In today's digital era, there is a growing demand for intelligence in security systems and various IoT scenarios. Based on the Synaptics SL1680 embedded processor, WPG AIT Group's machine vision AI Hub solution brings a new choice to the intelligent upgrade of traditional security systems and other fields, allowing devices to move from "visible" to "understandable".
Ⅰ Product Features (Highlights)
* Powerful computing power and efficient processing: The core SL1680 processor of the solution has 7.9TOPS NPU computing power, equipped with a quad-core Arm® Cortex-A73® 64-bit CPU subsystem, with a frequency of up to 2.1GHz, providing performance of up to 40,000 DMIPS, easily running various complex algorithms, realizing object recognition, detection, statistics and other functions, and providing solid support for intelligent analysis.
* Multi-modal fusion capability: It integrates the hardware module of image signal processing (ISP), 4K video codec and audio acceleration, supports multi-mode applications, meets the needs of visual and audio information fusion processing in different scenarios, and can realize voice prompts and video surveillance linkage in intelligent security.
* Rich interfaces and connectivity: Rich peripheral interfaces, including MIPI CSI-2, MIPI DSI, HDMI, I2S/TDM and other video and audio transmission interfaces, as well as SPI, SDIO, UART, USB, GPIO, ADC and other general interfaces, but also support Gbit network, PCIe connection, convenient to connect with various devices, flexible construction of system architecture, whether it is access to multiple cameras or other sensors, can easily deal with.

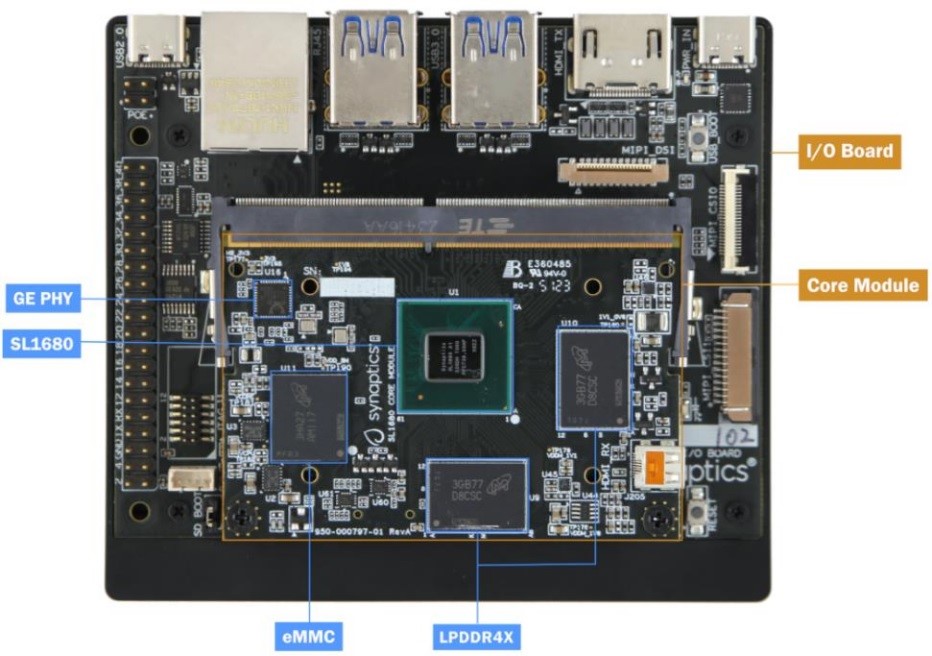

Figure: WPG AIT Display board of AYT's Synaptics product-based machine vision AI Hub solution
Ⅱ Technical Specifications:
* The CPU is a quad-core Arm® Cortex-A73® 64-bit processor with secure expansion, excellent performance and safe and reliable.
* The memory interface supports 64/32-bit LPDDR4/LPDDR4x-3733 DRAM controller, up to 4GB memory space, and is equipped with x1, x4 or x8-bit eMMC 5.1 controller to meet data storage and high-speed read and write requirements.
* The GPU is based on the graphics engine (Imagination™ PowerVR™ Series9XE GE9920) with a resolution of up to 3840×2160, which can achieve high-quality graphics rendering and provide power for the optimized display of video surveillance images.
* Video decoding supports a variety of formats, such as AV1, H.265/264 MVC, VP8, VP9 and MPEG-2, and flexibly supports PIP (2160p60/2160p60) and multi-view (1×2160p60 and 3×1080p60), and can flexibly configure video display modes according to the needs of different scenarios.
* Video encoding supports H.264 and VP8 multi-stream encoding, as well as 2160p60 decoding and 1080p60 encoding, effectively realizing efficient compression and transmission of video data, reducing storage costs and network bandwidth occupation.

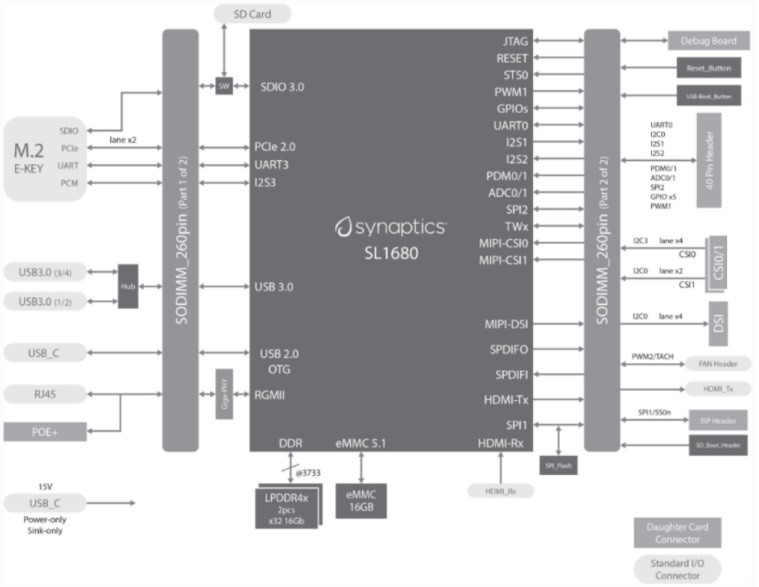

Figure: Block diagram of WPG's machine vision AI Hub solution based on Synaptics products
Ⅲ Application scenarios
* Intelligent security field: On the basis of traditional security cameras, intelligent upgrades are realized through this solution, which can automatically identify suspicious persons and vehicles, conduct behavior analysis, such as detecting abnormal behaviors such as illegal intrusion and fighting, and timely issue alarms and notify relevant personnel, greatly improving the efficiency and accuracy of security monitoring and reducing the cost of manual monitoring.
* Industrial manufacturing scenarios: It can be used for product quality inspection, such as appearance defect detection and dimensional measurement of electronic components, through real-time analysis of the images collected by the camera on the production line, quickly and accurately screen out unqualified products, improve production efficiency and product quality, and ensure the production efficiency of enterprises.
* Smart retail industry: help realize customer behavior analysis of unmanned retail stores, such as monitoring customer flow, dwell time, and product picking action, etc., provide data support for store operations, optimize product display and store layout, improve customer shopping experience, and realize anti-theft alarm function to prevent product loss.
Figure: Scenario application diagram of WPGD's machine vision AI Hub solution based on Synaptics products
Ⅳ Summary
WPG's Synaptics SL1680-based machine vision AI Hub solution has shown great application potential in security monitoring, industrial manufacturing, and smart retail with its powerful performance, rich interfaces, and multi-modal fusion capabilities. It provides an efficient and low-cost solution for the intelligent upgrade of traditional equipment, helping enterprises achieve digital transformation and business innovation. With the continuous development of technology and the expansion of application scenarios, this solution is expected to play an important role in more industries, promote the wide application of intelligent vision technology, and open a new era of intelligent vision.
